Visionline 6" Insulated Flue System

The VisionLINE Insulated Flue System (IFS) replaces traditional air-cooled flue designs with high-quality Morgan Ceramic insulation, ensuring the outer skin remains cool while safely passing through combustible areas. By eliminating the need for ventilated skins, IFS prevents heat loss and retains valuable room air,enhancing energy efficiency. Designed for effortless installation, IFS features a unique twist-lock connection — the only joint on the market to achieve EN and CE certification for water ingress protection. This guarantees superior resistance against harsh Australian weather conditions, keeping water out even in extreme environments.

With a consistent pipe size (150mm active, 200mm outer) from the fireplace spigot to the cap, IFS simplifies installation while offering a fully powder-coated, high-temperature black finish. This sleek design provides a clean, modern look both inside your home and above the roofline while also offering enhanced durability against the elements. Constructed entirely from stainless steel, it is ideal for coastal areas with salt-laden air.

IFS significantly reduces wind noise — up to 95% compared to a Standard Flue System (SFS). Unlike traditional flue systems, it eliminates open air connections between the cowl and room, preventing rattling noises often found in older systems. Additionally, IFS is BAL-FZ (Bushfire Attack Level –Flame Zone) approved, the highest possible rating, ensuring maximum protection in bushfire-prone areas.

The flue system is tested according to Appendix B of AS/NZS2918:2018 on solid fuel appliances with maximum average heat outputs up to 15kw and a 6 inch active flue. Units up to 12kw (max average) can be installed observing the Appendix B clearances of the tested appliance using a default flue with a single 180o rear heat shield, Decro mesh or Solid decro. Units requiring a double heat shield will also require an additional shield to meet rear clearance requirements. Units above 12kw and below 15kw (max average) require an additional reflective stainless steel 900mm x 180o flue shield installed directly above the appliance to the ceiling. Tested appliances should have this information on the compliance plate on the rear of the heater or alternatively you can request this information from the appliance manufacturer.

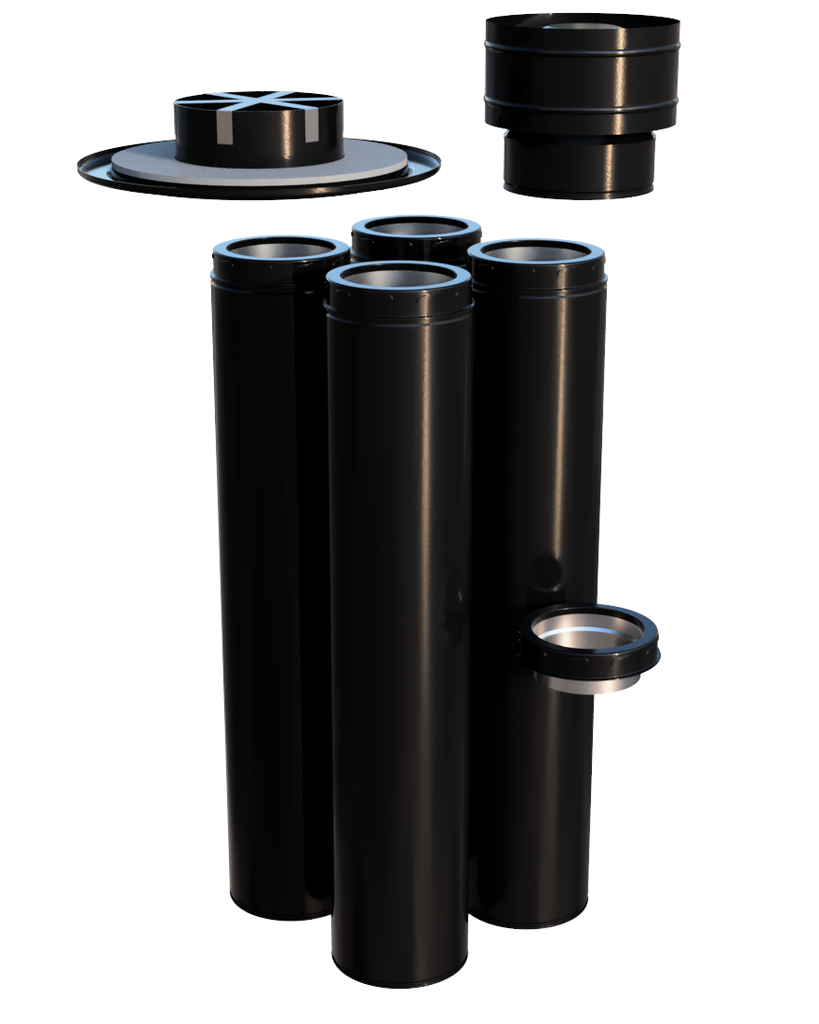

Inclusions:

4x INSULATED FLUE 25MM 1000MM PIPE with locking bands

1x INSULATED FLUE 25MM CEILING RING (PACKAGED SEPARATELY)

1x INSULATED FLUE 25MM RAIN CAP

1x INSULATED FLUE 25MM SPIGOT ADAPTER

When comparing IFS kit's with other insulated flue kits on the market, note that our kits come standard with things normally sold as an upgrade such as;

High Wind Cowl

We provide a Black high wind cowl standard to reduce wind related pressure issues with the firebox.

Normally an extra $55 for black and high wind

Black as standard

Our powder coated flue and components can withstand the outdoor elements and minor scraping which can occur during installation. Easily wipe rub marks off with a damp rag or touch up with Satin black paint straight out of a can.

Normally an extra $40.
