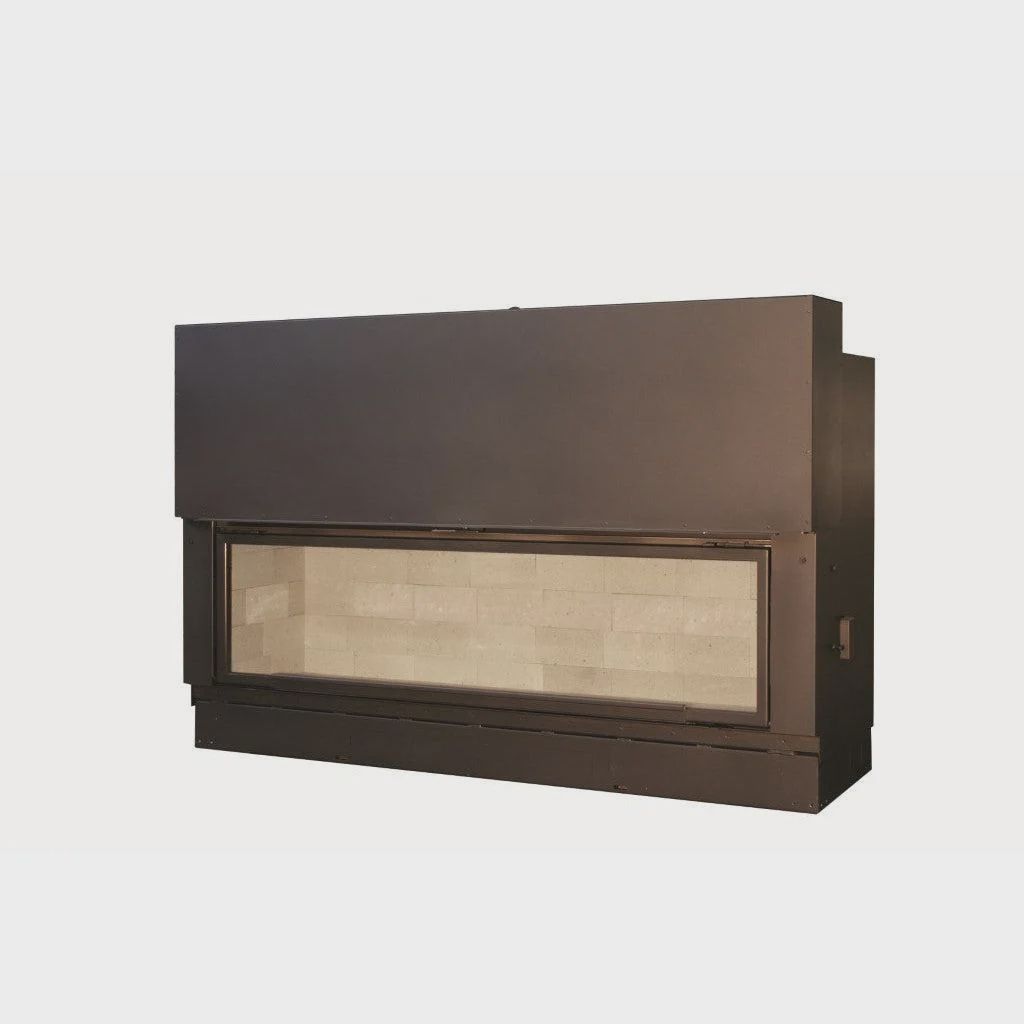

Axis H1600 XXL Single and Double Sided

Australia’s largest inbuilt wood fireplace!

With an unbelievable 1.7m glass viewing area, the Axis H1600 XXL Single and Double Sided has the flexibility to be used as an open fireplace or slow combustion wood heater.

The Axis H1600XXL inbuilt wood fireplace is equipped with Double Air Flow System technology with the aim to inject oxygen at a determined level inside of the combustion chamber. The supply of new oxygen will burn the gases and smoke that has not yet been burnt and prevent them from being released into the flue system. The advantages of this; a longer fire term, cleaner glass and bricks, also total combustion of the fire wood.

All Axis fireboxes are made up of interlocking bricks that are manually assembled and have been baked at 1350°. This avoids dilatation problems and encourages uniform and permanent heat accrual. The patented refractory bricks also ensure the accumulation, transmission and continuous release of heat over a superior period of time even after the fire has dissipated. During a fire in an Axis fireplace, the bricks will be heated to a temperature approximately of 600°C. When the fire dies the bricks will take around 6-10 hours to cool down, which allows Axis units to have an even larger heating capacity than most fireplaces on the market today. It is because of this that Axis fireplaces are one of the only suppliers in Australia to have a 10 year firebrick warranty, proving the longevity of these flawlessly manufactured fireplaces.

All Axis fireplaces have Triple Action Heating; RADIANT (glass), ACCUMULATION (bricks) and CONVECTION (firebox). A perfect collision of practicality and well-made contemporary design, the Axis fireplace collection features the best in fireplace performance and innovative technology.

Specifications

Material: Solid steel firebox construction with 60mm hand-assembled interlocking firebricks (sand-stone colour)

kW Output: 40kW+

Heating capacity (m2): Up to 250-400m2*

Facade: Clean frameless design (no trim)

Glass door: Secure lift up glass door with locking mechanism or forward levering for easy cleaning

Minimum flue height: 5.4m

Flue dimensions: 300mm, 350mm, 400mm

Includes hot air transfer kit: Two ducts and two registers

Hearth dimension: Minimum 500mm in front of any part of the fireplace, 250mm on either side and 75mm thick

Outside air kit: Recommended for well insulated homes ($750)

Warranty: 10 year fire brick warranty*

Weight: 530kg
